BLADE BLC-2TC
Dual Axis Pulse/Dir or Quadrature Controller
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 2.5 × 4.5 × 0.5 in |
Key Features
- Two Axis Pulse/Dir or Quadrature Controller
- 12-24Vdc Input
- Control Digital Servos or External Stepper Drives
- (8) Digital Inputs
- (6) Digital Outputs
- (3) 16-bit Analog Input
- (1) 12-bit Analog Output
- Can be Configured in Snap2Motion as a Remote Axis to any other ModuSystems Controller
- USB and Serial Communication
The BLC-2TC is a Dual Axis Pulse/Dir or Quadrature Controller capable of controlling digital servo drives or external stepper drives. The BLC family of controllers were designed to be a Cost Effective OEM solution for Motion & Machine Control. Each Module has 2-axes that are internally coordinated; but with the dual RS232 serial ports, multiple units can be daisy chained together for higher axis count applications. All axes are detected and their resources are available during programming without needing to connect to each unit individually.
You may also need…

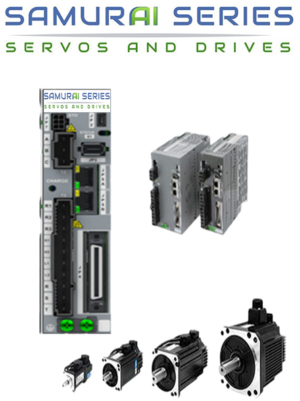

SAMURAI AC5 SERVO
Ethernet Protocols including Modbus TCP/IP, EtherCAT, EtherNET/IP, Profibus
Read more

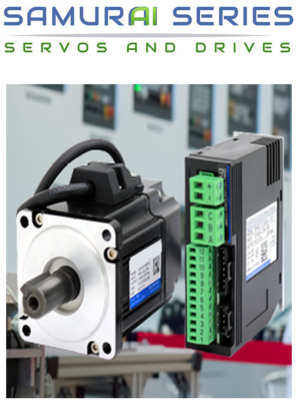

SAMURAI DC2 SERVO
