GNT-XXYZ-R6B
XYZ Gantry System
Price range: $9,850.00 through $17,750.00
| XX' Stroke Distance (mm) | 500, 750, 1000, 1500, 2000, 2500, 3000, 5000 |
|---|---|
| Y Stroke Distance (mm) | 250, 500, 750, 1000, 1500 |
| Z Stroke Distance (mm) | 150, 250, 500 |
XX’YZ Belt Driven Gantry Solution:
- XX’ Max Travel = 5800mm
- Y Max Travel = 1500mm
- Z Max Travel = 500mm
(System Includes Lineshaft, Cable Tracks, and all Connecting Elements – Does NOT include Gearboxes, Motor Mounts, or Motors -> Contact Modusystems for Proper Motor/Gearbox Sizing and Selection)
- Max Payload on Z is dependent on Payload Mass and Induced Moment Loading based on Speed and Acceleration:
- Slow Speeds (<6 in/sec) and Accel (~0.05g) = 100 lbs
- Moderate Speeds (<18 in/sec) and Accel (~0.1g) = 50 lbs
- High Speeds (>18 in/sec) and Accel (~0.5g) = 25 lbs
- Max Speed with Light Payload (<25 lbs) = 75 in/sec
More Gantry Sizes and Stroke Lengths are Available – Please Contact ModuSystems to Configure
Quote Request
You may also like…
N34-4
NEMA 34 - Quad Stack Stepper Motor
Price range: $322.69 through $487.75
Select options
This product has multiple variants. The options may be chosen on the product page

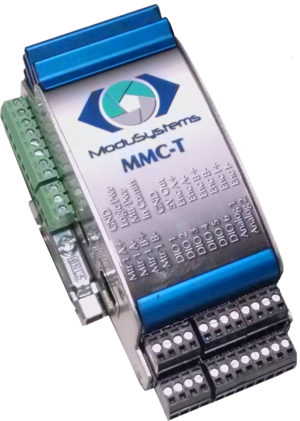

MMC-T
