LYNX Single Belt Actuator-SBA
High Speed, Precise Automation

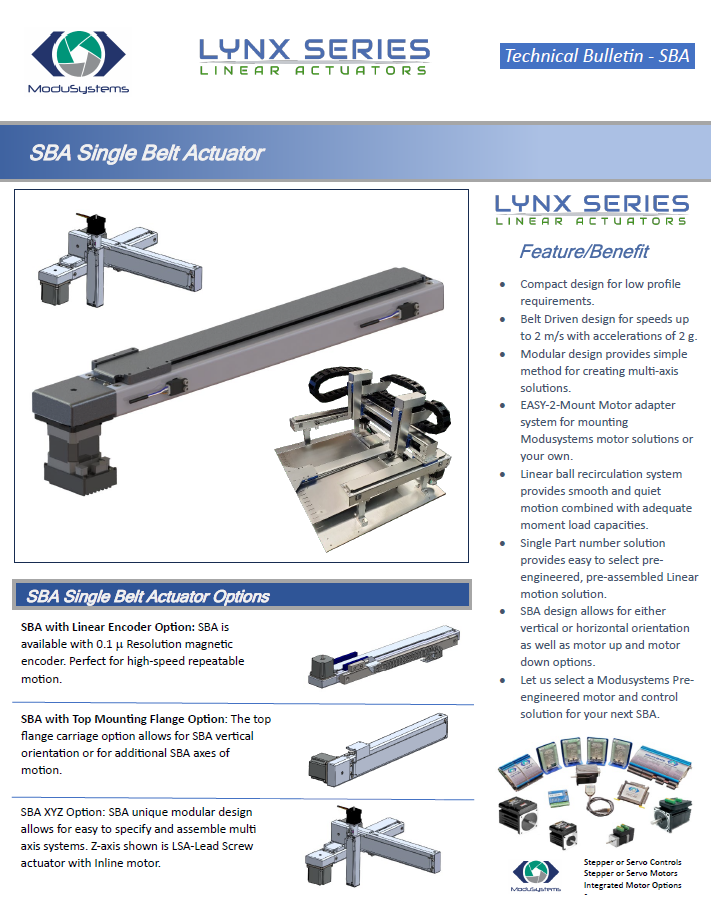

LYNX Series SBA Single Belt Actuator
The LYNX Series SBA Single Belt Actuator from Modusystems is a high-speed, compact linear motion solution engineered for demanding automation environments. Designed with a low-profile footprint and belt-driven architecture, the SBA achieves speeds up to 2 m/s and accelerations up to 2 g—making it ideal for high-throughput applications .
Built on a modular platform, the SBA simplifies the creation of multi-axis systems while maintaining smooth, quiet performance through its linear ball recirculation system and strong moment load capacity . The EASY-2-Mount motor adapter system supports Modusystems’ pre-engineered motor and control packages—or your own motor selection—providing integration flexibility without added design complexity .
The SBA supports both vertical and horizontal orientations, with motor-up and motor-down configurations to suit your machine layout . For applications requiring enhanced precision and repeatability, an optional 0.1 µ resolution magnetic linear encoder is available, delivering high-speed repeatable motion .
Offered as a pre-engineered, pre-assembled single part number solution, the LYNX Series SBA reduces engineering time, streamlines specification, and accelerates deployment—whether used as a standalone axis or as the foundation of a fully integrated multi-axis system.
Built by Modusystems. Engineered for high-performance motion.
