LYNX Dual Belt Drive Systems-DBA

Two Independent Carriages

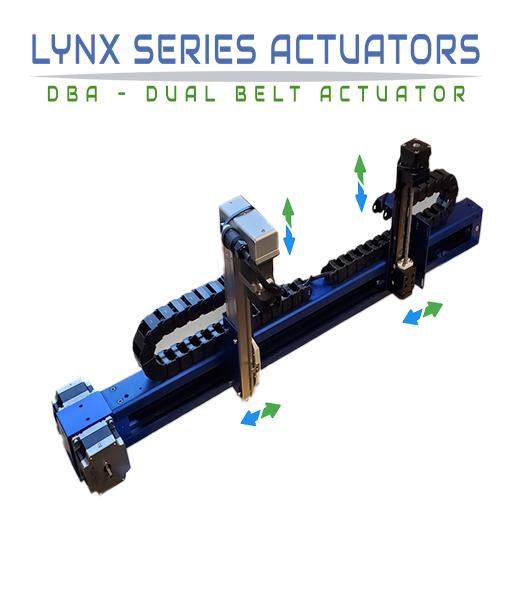

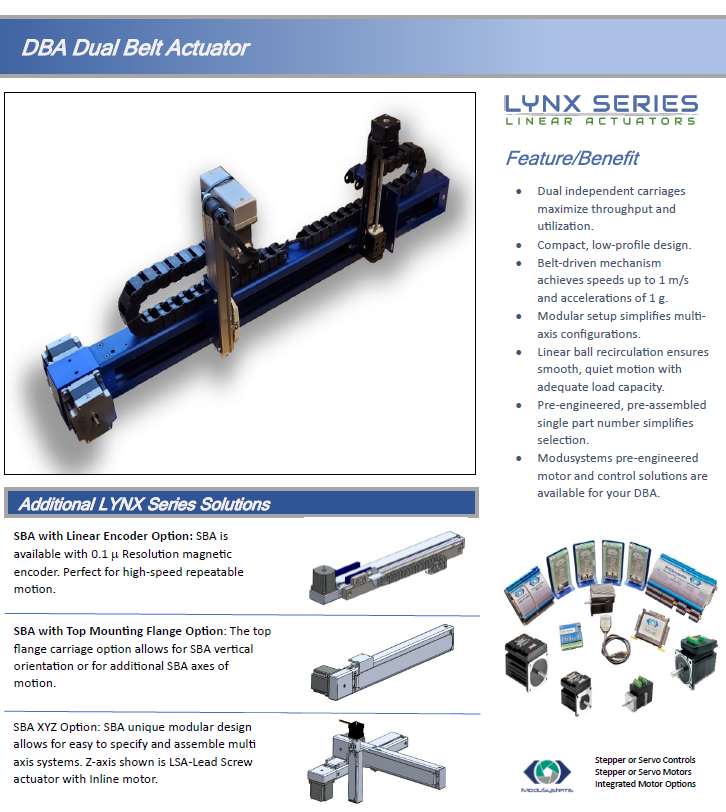

LYNX Series DBA Dual Belt Actuator

The LYNX Series DBA Dual Belt Actuator from Modusystems is engineered for high-speed, high-throughput linear motion applications where precision and efficiency matter most. Designed with dual independent carriages, the DBA maximizes system utilization and productivity within a compact, low-profile footprint .

Powered by a belt-driven mechanism capable of speeds up to 1 m/s and accelerations of 1 g, the DBA delivers smooth, quiet motion through linear ball recirculation while maintaining reliable load capacity . Its modular architecture simplifies multi-axis configurations, allowing engineers to easily integrate vertical axes, encoder feedback options, and additional motion stages for scalable automation solutions .

Pre-engineered and pre-assembled under a single part number, the DBA streamlines selection, reduces design time, and minimizes integration risk . With integrated motor options, stepper or servo control solutions, and configurable travel lengths, the LYNX Series DBA offers a flexible, high-performance platform built for modern automation systems.

Built by Modusystems. Engineered for motion.
