LYNX HD XY

LYNX HD XY Lead Screw Drive System

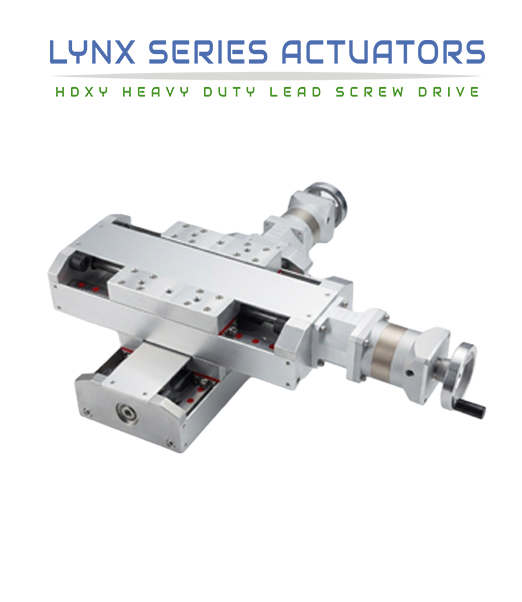

The LYNX HD XY Lead Screw Drive from Modusystems is a heavy-duty, precision-engineered motion platform designed for high-load, high-stiffness multi-axis applications. Built for demanding industrial and automation environments, the HD XY system delivers exceptional dynamic and static load capacity while maintaining smooth, accurate positioning .

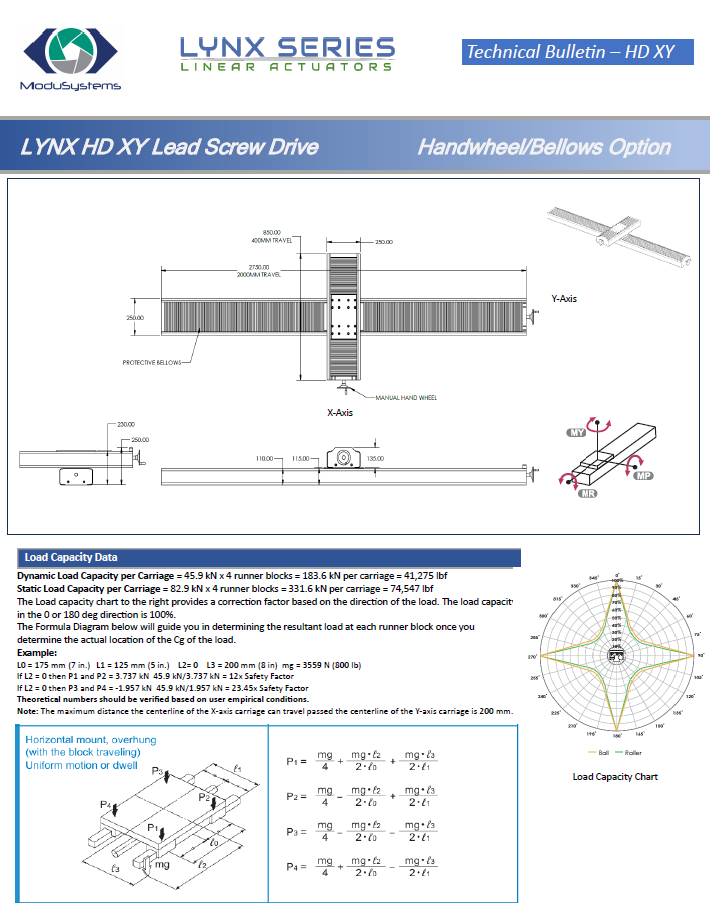

Each carriage is supported by four runner blocks, providing a dynamic load capacity of 183.6 kN (41,275 lbf) per carriage and a static load capacity of 331.6 kN (74,547 lbf) . Integrated load capacity charts and calculation formulas guide engineers in determining resultant loads and safety factors based on center-of-gravity positioning, ensuring confident system design and real-world performance validation .

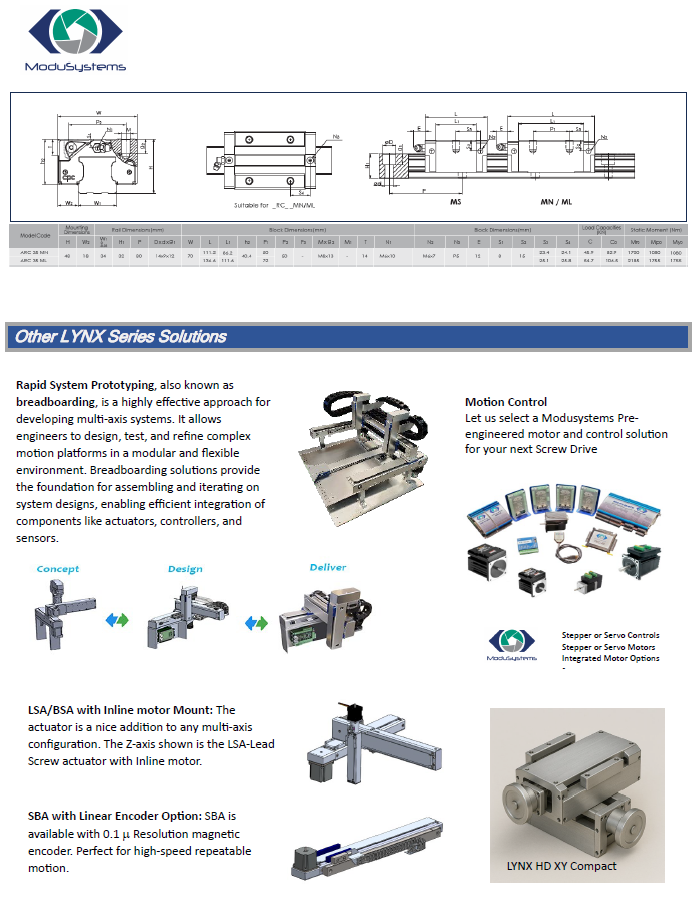

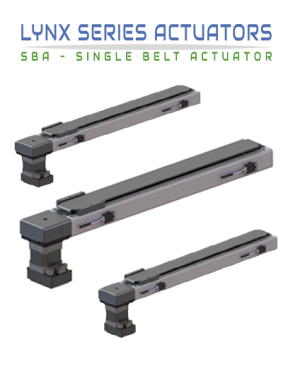

The HD XY platform supports modular expansion and system integration, including handwheel and protective bellows options for manual control and environmental protection . As part of the broader LYNX Series ecosystem, it integrates seamlessly with LSA/BSA screw-driven actuators and SBA belt-driven axes to create scalable multi-axis systems . Ideal for precision machining, inspection systems, automation breadboarding, and high-load positioning applications, the LYNX HD XY provides the structural backbone for advanced motion platforms where rigidity, repeatability, and reliability are non-negotiable. Built by Modusystems. Engineered for heavy-duty precision motion.
