LYNX Lead/Ball Screw Actuator

LYNX Series LSA/BSA Lead Screw & Ball Screw Actuators

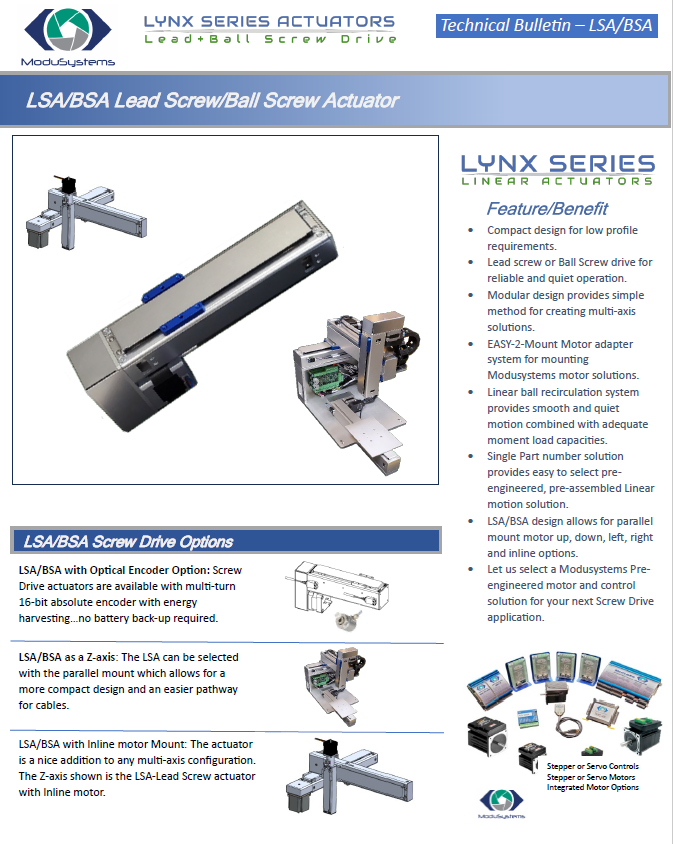

The LYNX Series LSA/BSA Screw Drive Actuators from Modusystems deliver precision linear motion in a compact, low-profile design built for performance-critical automation systems. Available in both lead screw (LSA) and ball screw (BSA) configurations, these actuators provide reliable, quiet operation with smooth motion and strong moment load capacity . Designed with modularity at the core, the LSA/BSA platform makes it easy to create multi-axis systems while simplifying integration. The EASY-2-Mount motor adapter system supports Modusystems’ pre-engineered motor and control solutions, with flexible motor orientations including up, down, left, right, and inline mounting options . This versatility makes the LSA/BSA ideal for horizontal axes, compact Z-axis configurations, and fully integrated multi-axis assemblies. For applications requiring enhanced feedback and positioning accuracy, optical encoder options are available, including multi-turn 16-bit absolute encoders with energy harvesting—eliminating the need for battery backup . Each actuator is offered as a pre-engineered, pre-assembled single part number solution, reducing design time and streamlining specification .

Whether your application prioritizes cost-effective thrust control with a lead screw or higher efficiency and speed with a ball screw, the LYNX Series LSA/BSA provides a scalable, precision-driven foundation for advanced automation.

Built by Modusystems. Engineered for precision motion.
